Description:

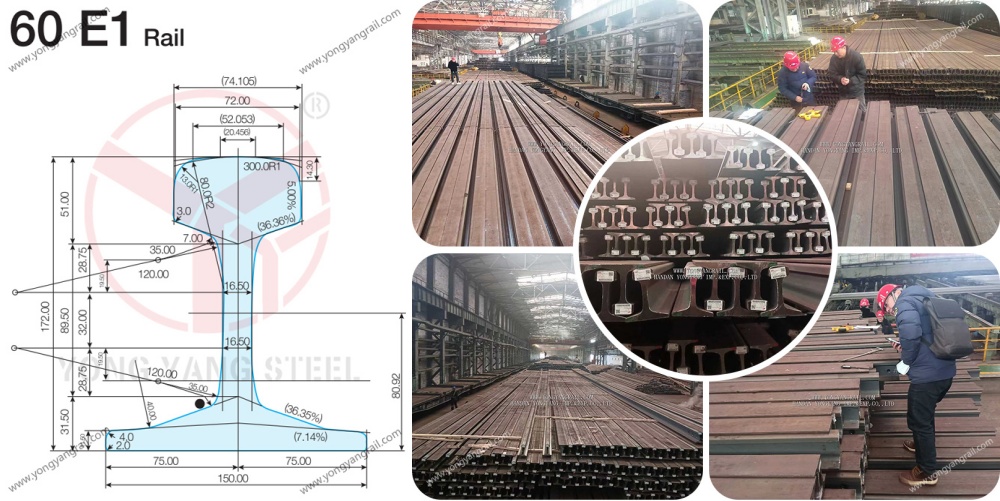

The 60E1 (UIC60) rail model is manufactured according to the European standard EN 13674-1. It is used for railroad construction. This is a type T section rail (flat bottom rails) with a 60.21 kg mass per meter. For a standard track, the 60E1/UIC60 rail is for medium and heavy load traffic.
The UIC plays an important role in the piece standardization for railway construction, and the 60E1/UIC60 rail is the best example of this. The origin of the standard for the manufacture of this type of Steel Track comes from the International Union of Railways, founded in 1922, with the objective of promoting global rail traffic and confronting transportation challenges and promoting sustainable development.
| R350HT | Mechanical Property | Chemical Composition | |||||||||
| Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | ||
| MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥1175 | 9% | 350-390 | 0.72-0.80 | 0.15-0.58 | 0.70-1.20 | 0.025 | 0.02 | 2.5 | |||
| R260 / U71Mn /900A | Mechanical Property | Chemical Composition | |||||||||
| Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | H ppm | O ppm | ||
| MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ||||
| ≥880 | 10% | 260-300 | 0.62-0.80 | 0.15-0.58 | 0.70-1.20 | 0.025 | 0.025 | 2.5 | 20 | ||
YONGYANG as a trusted supplier of 60E1 Rail and UIC60 Rail, offers top-notch materials that adhere to the UIC Standard 60E1 Steel Rail specifications. Built with precision and durability in mind, our UIC Standard 60E1 Steel Rail boasts exceptional strength and resilience, making it the preferred choice for railways worldwide. Whether it's high-speed passenger lines or heavy freight corridors, our UIC 60 rail delivers consistent performance under varying loads and conditions. Contact us today to learn more about our offerings and how we can support your operational needs.
Why Choose YONGYANG 60E1(UIC60) Rail?
As a leading provider of railway solutions, YONGYANG offers top-tier 60E1 rail that exceeds industry expectations. Engineered to withstand the rigors of heavy-duty rail transport, our UIC60 rail profile ensures smooth and safe operations across diverse railway networks.
At YONGYANG, quality is our priority. Each rail undergoes rigorous testing and inspection to guarantee compliance with UIC standards and meet the stringent requirements of modern rail infrastructure. With our commitment to excellence, you can trust YONGYANG to provide reliable EN 60E1 (UIC 60) steel rail that keeps your railway on track for success.
Our 60E1 Rail options are meticulously crafted to ensure maximum strength, durability, and reliability, making them ideal for supporting the safety and efficiency of railway operations. These rails are engineered to withstand the unique challenges and demands of railway environments, ensuring stability and performance in your transportation system. Click to learn more.
